Drive System

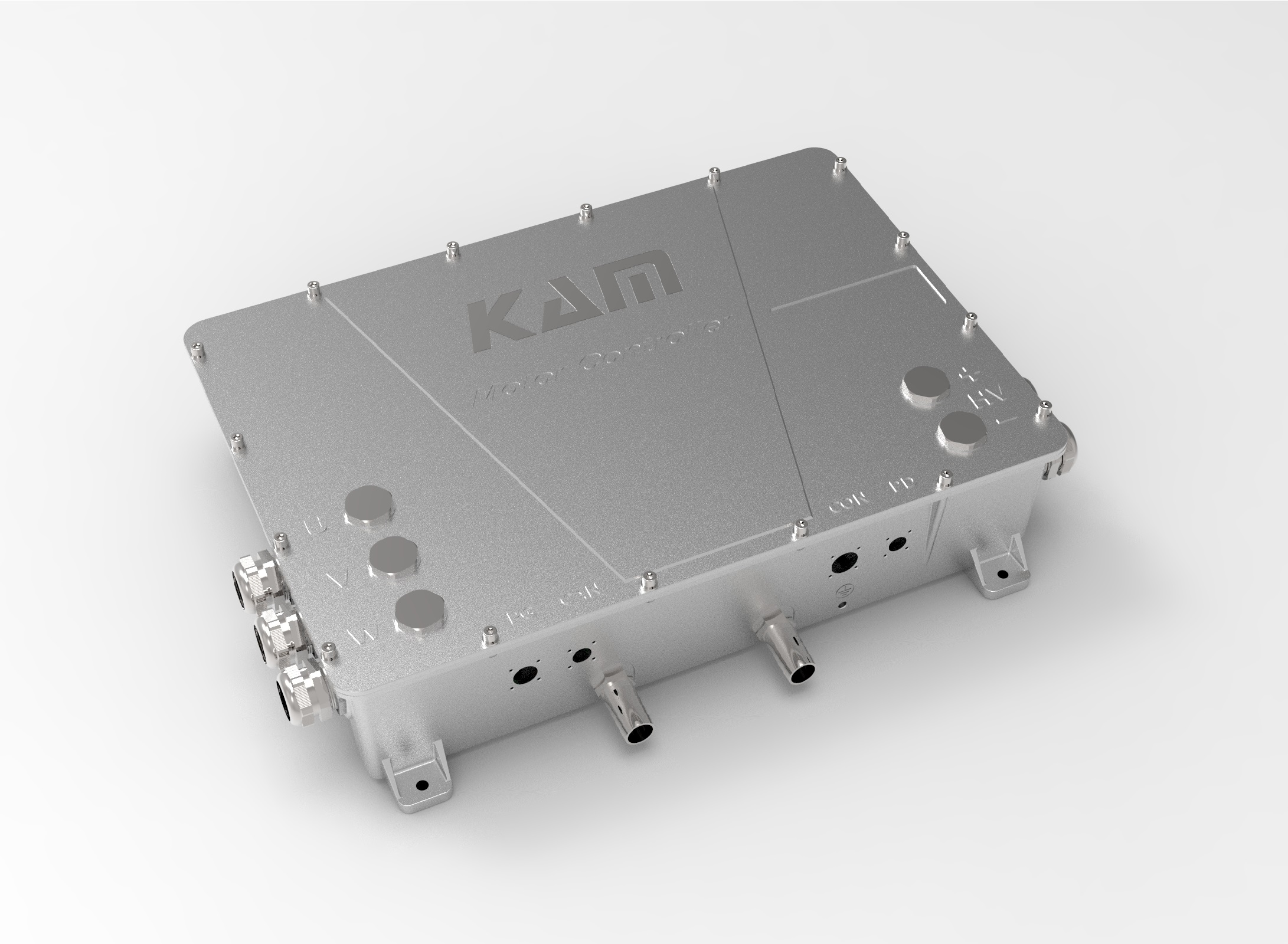

Water Cooling Motor Controller

KAM has rich experience of nearly 10 years on development and improvements of drive system for electric vehicles. So far, KAM has developed a complete new motor controller which can be used for controlling both permanent magnet synchronous motor and asynchronous motor, the maximum output power is up to 240kW. This motor controller is compatible for the vehicles vary from 10meter to 18meter buses including double-desk buses. This system has been in production with die-casting mold and already be the standard product,no need to make any changes except software upgrades. With highly integrated design and convenient and fast installation, which only one box with all above functions, ,it’s definitely a convenient product for after-sale service in future.

INTEGRATED MOTOR CONTROLLER(Water Cooling)


For low voltage system(346V)


Operating SystemS5Cooling ModeWater Cooling
Rated Capacity(KVA)90Maximum Capacity(KVA)160
Rated Input Voltage(V)346Rated Input Current(A)250
Rated Output Voltage(V)3Φ220Rated Output Current(A)250
Peak Output Frequency(HZ)400Peak Output Current(A)750
Control Power(V)22~28VDCDimensions (mm)530*395*246
Degree of ProtectionIP65Weight(Kg)30
Over voltage protection(V)400Over Current Protection(A)850
Under voltage protection(V)280Overheat Protection(℃)75




For high voltage system(580V)


Operating SystemS5Cooling ModeWater Cooling
Rated Capacity(KVA)130Maximum Capacity(KVA)260
Rated Input Voltage(V)576Rated Input Current(A)250
Rated Output Voltage(V)3Φ380Rated Output Current(A)300
Peak Output Frequency(HZ)400Peak Output Current(A)700
Control Power(V)22~28VDCDimensions (mm)580*403*132
Degree of ProtectionIP65Weight(Kg)30
Over voltage protection(V)700Over Current Protection(A)800
Under voltage protection(V)450Overheat Protection(℃)65
